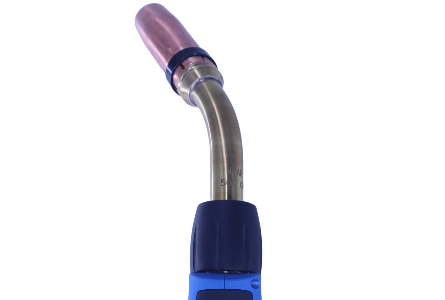

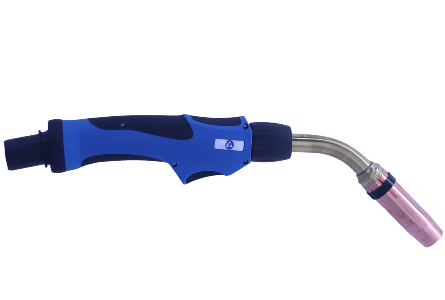

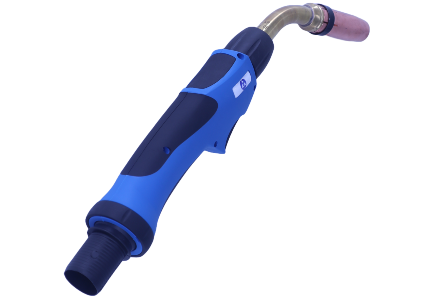

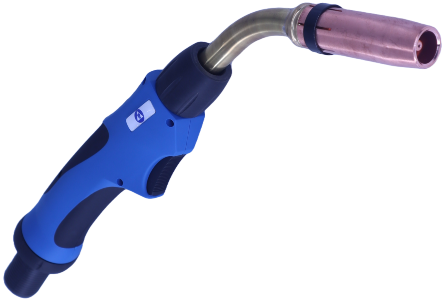

M-AR 500W CR

MIG-MAG Manual Welding Torch

Product details

M-AR 500 CR Welding
M-AR 500 CR Welding
M-AR 500 CR Welding
M-AR 500 CR Welding
M-AR 500 CR Welding
M-AR 500 CR Welding
M-AR 500 CR Welding
M-AR 500 CR Welding

Technical data according to EN 60 974-7

Rating:
CO2: 500 A
Mixed gas M21 (DIN EN ISO 14175): 450 A mixed gas (DIN EN ISO 14175)
Duty cycle: @100%
Wire-Ø: 0,8 – 1,6mm

Part Number / Details

3m4m5m
M-AR 500W CR cpl. with blue handle, Euro-connection (equipped Steel Liner 2,0x4,5mm)2519M302002519M402002519M50200
M-AR 500W CR cpl. with grey handle, Euro-connection (equipped Steel Liner 2,0x4,5mm)2519M301002519M401002519M50100
You will find all information und order numbers as well as detail drawings in the Data sheet -PDF.
to PDF CONTACT
