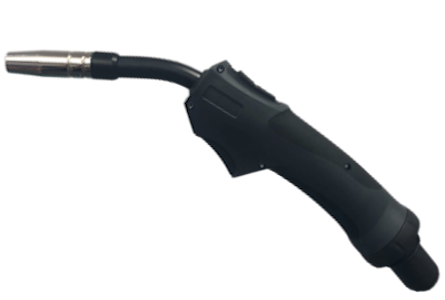

M-AR 150G

MIG-MAG Torch

Productdetails

Technical Data according to EN 60 974-7

Rating:
CO2: 180 A
Mixed gas M21 (DIN EN ISO 14175): 150 A
Duty cycle: @ 60%
Wire-Ø: 0,6 - 1,0 mm

Part Number / Details

Part. No.3m4m5m
M-AR 150G for slip-on nozzle cpl. with blue handle, Euro-connection (Steel Liner 1,5x4,0mm)2150M302002150M402002150M50200
M-AR 150G for slip-on nozzle cpl. with grey handle, Euro-connection (Steel Liner 1,5x4,0mm)2150M301002150M401002150M50100
M-AR 150G for screw-on nozzle cpl. with blue handle, Euro-connection (Steel Liner 1,5x4,0mm)2151M302002151M402002151M50200
M-AR 150G for screw-on nozzle cpl. with grey handle, Euro-connection (Steel Liner 1,5x4,0mm)2151M301002151M401002151M50100
You will find all information und order numbers as well as detail drawings in the Data sheet -PDF.
to PDF Contact
